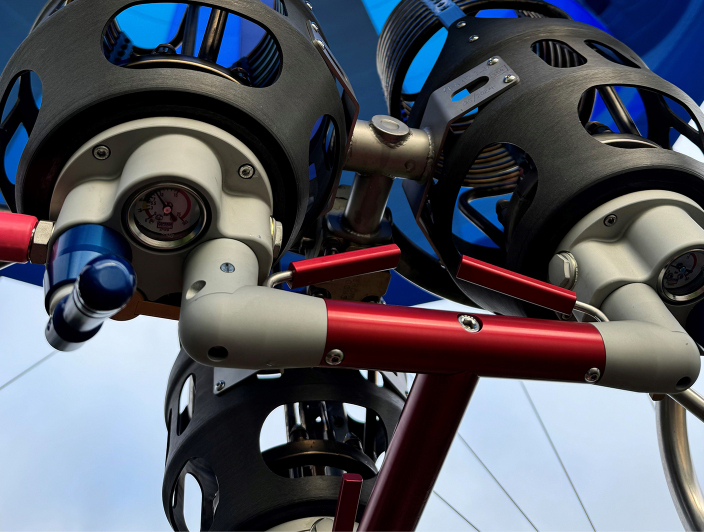

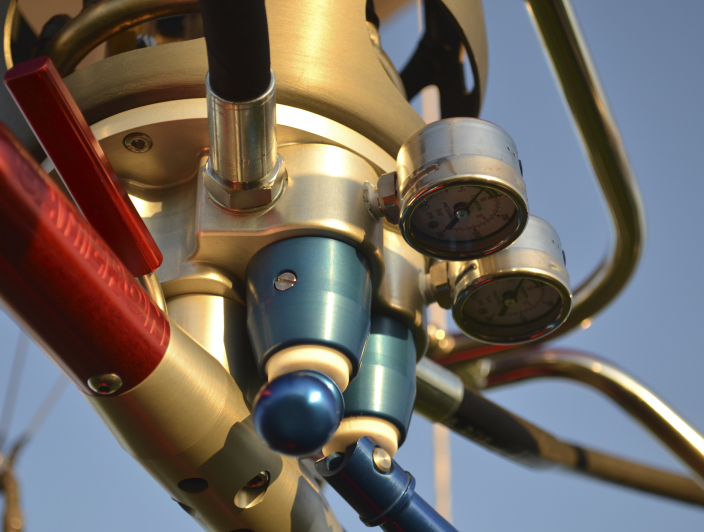

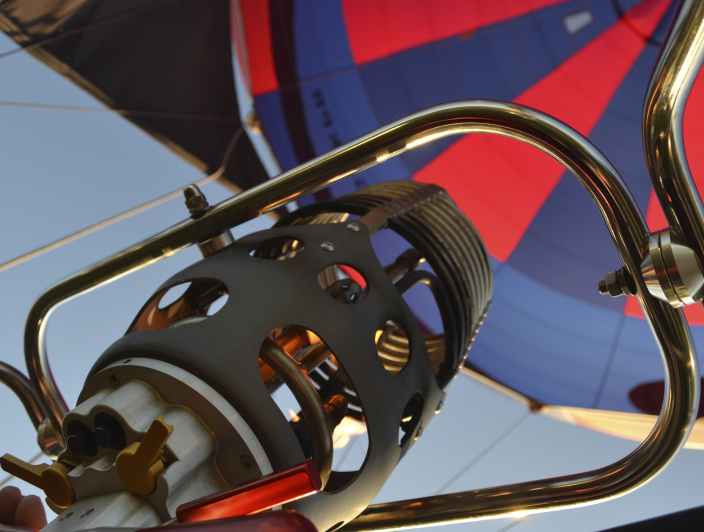

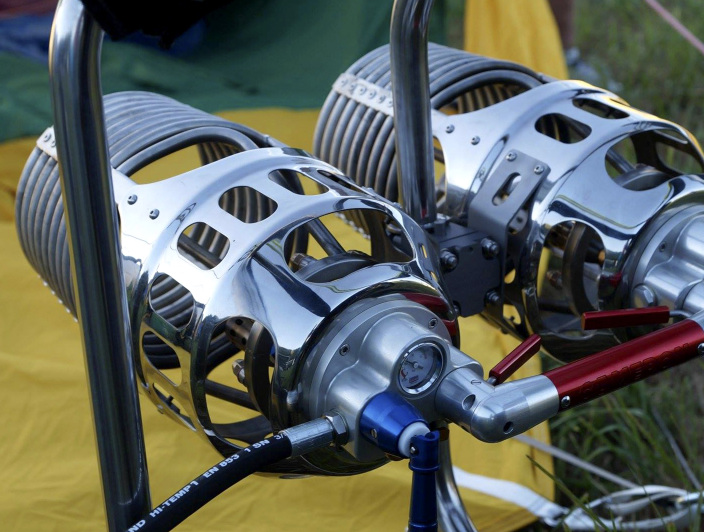

EnquireThe StratusNEO Burner has been developed to combine the best features of the Stratus and Shadow. With familiar control operation and layout, this next generation burner is an easy-to-use blend of your favourite burners.
The aim is to combine reliability with ease of maintenance, while being compatible with existing burner frames. The approved StratusNEO gives high output across a wide range of fuel pressures. With just five quick access fasteners to undo, the non-handed can and coils are easily removed.

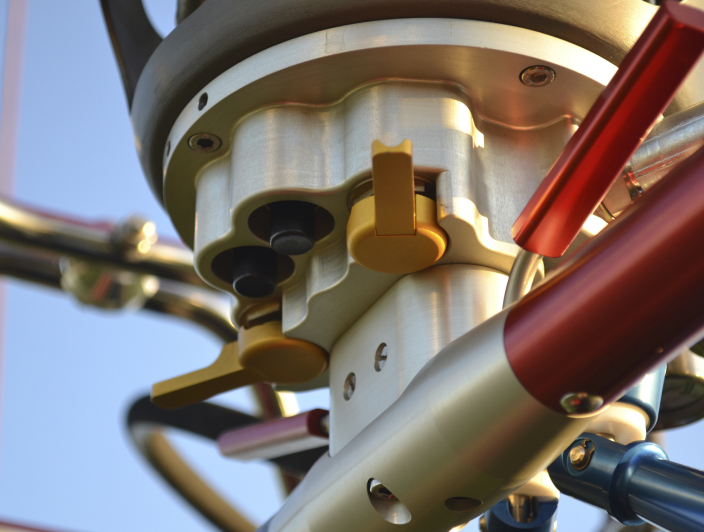

The main burner is fitted with a squeeze action blast valve, coloured red, which are operated by squeezing the control level towards the hand grip. The pilot light valves are operated by rotary action handles, coloured yellow.
The whisper valves are operated by toggle action handles or optionally by rotary action handles. These controls are blue in colour.

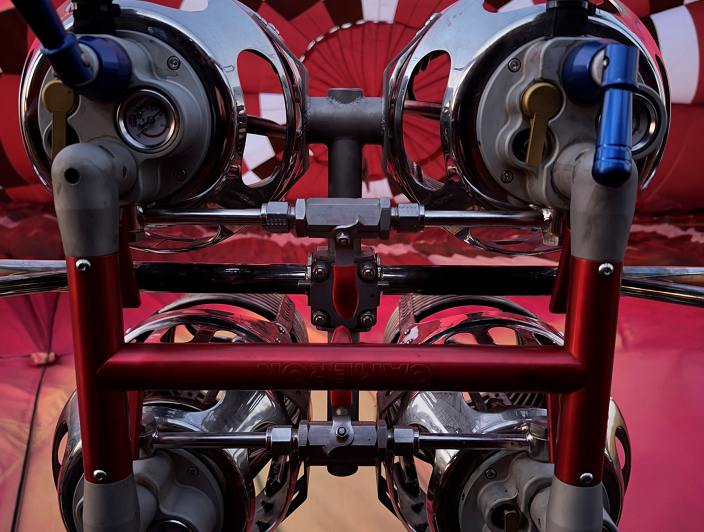

The triple and quad burners are fitted with crossflow systems allowing the output of one blast valve to be routed to two coils. The crossflow function is controlled by a red handled quarter-turn ball valve mounted within the crossflow pipework.
Blocks are easily removeable from the cans for servicing and maintenance.
Lighter Aluminium or more robust Stainless Steel, the choice is yours. Aluminium cans are an optional extra for the Neo Single upwards.
Stainless steel cans are standard with the Neo Triple upwards.
All valves come with accessible lubrication ports.
All burners come with toggle whisper valves as standard. Rotary action is an available option.
Choose from the following combinations to suit your balloon:
| Approx. Weight (inc. Karabiners) |
Min. Envelope Size | Max. Envelope Size | |
|---|---|---|---|
| CB-4111 - Single Neo | 17kg* | 17,000ft3 (481m3) | 105,000ft3 (2,975m3) |
| CB-4112 - Double Neo | 22kg* | 56,000ft3 (1,585m3) | 210,000ft3 (5,950m3) |
| CB-4113 - Triple Neo | 44kg* | 140,000ft3 (3,970m3) | 315,000ft3 (8,920m3) |
| CB-4114 - Quad Neo | 52kg* | 180,000ft3 (5,100m3) | 750,000ft3 (21,238m3) |
* The component weights given are approximate and for guidance pruposes only.
** Price for 4 pole frame. 8 pole frame has additional cost.
Add 3kg for adjustable height frame.
Add 7kg if metal heat shields are fitted.
“The reproduction of the image on the envelope is truly stunning, but then with Cameron Balloons we know that quality comes as standard”
Damian Crock, Picture This Ballooning, Australia
“The Balloon itself is marvellous, the basket is very comfortable. The Neo burner is very powerful! I had to get used to that power, but after a couple of minutes flying it was a real pleasure.”
Oscar Dragt
“..we did the media launch today and it was really fantastic! Everyone was so impressed and the Cirque people were completely blown away!!! You guys really did an absolutely amazing job!!!”
Justin Armour, Sales Director, Adguru Media Group
“It was an absolute pleasure to visit, and is fascinating to see where & how our balloons are made. The welcome we received was brilliant and your staff were so accommodating. They’re an absolute credit to the business.”
Alex Ferguson, Virgin Balloon Flights Ltd
“It has been a pleasure to work with everyone at Cameron Balloons Ltd on this project for Universal Pictures and I hope we can continue to do so with other clients. Thanks to everyone at CBL for ‘making this happen’.”
Nick Langley, MD @ Airship & Balloon Company Ltd, UK
“We’ve spent a nice time flying our great, new balloon! We are proud that our gorgeous balloon has the label ‘Cameron Balloons’, and always recommend your company as one of the best aeronautic company”
Yana Vaseva, Russia
Built on experience and engineering expertise, the Cameron Balloons range of burners are the most comprehensive of all. Quiet power, reliability and ease of maintenance are combined to give rapid heating, quick response and relaxed cruising.
Approved to the highest standards, all burners are suitable for even the harshest environments. With more than 5,000 burner units in service, Cameron burners are the choice for professional operators or sports pilots.
Whichever your choice, the superior design guarantees simple, reliable and fast servicing and maintenance even in the harshest of environments.
These burners are incorporated into the stainless-steel tubular frames, manufactured to the highest aerospace standard and are all EASA (European Aviation Safety Agency) approved.
